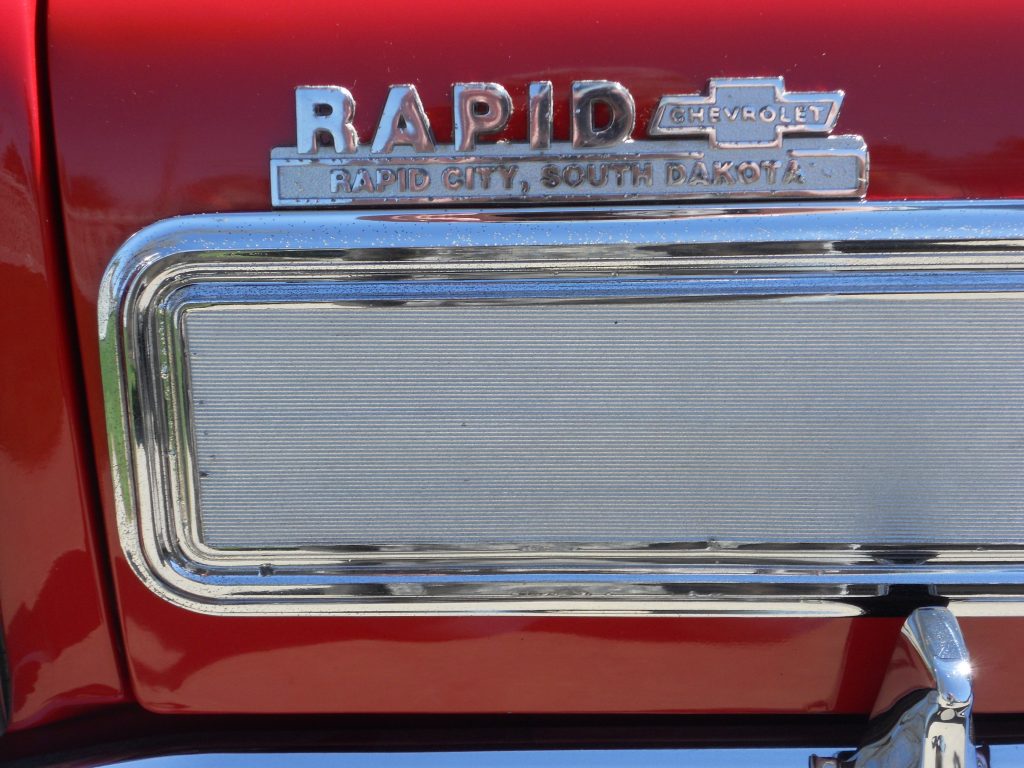

Someone on the Nova board was looking for a dealer emblem for their car. here’s a 3D printed version I made for them:
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/03/IMG_2016.jpeg)
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/03/IMG_2015-e1711757433607.jpeg)

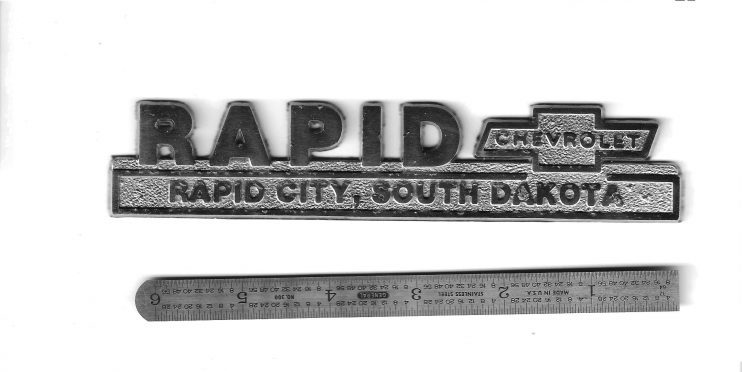

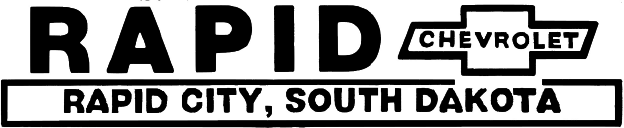

Using the scanned image of the emblem, I used GIMP to reduce it to a pure black-and-white image using the posterizing filter. Once that was done, I hand-edited the result to clean up and straighten the noise in the image.
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/04/emblem8.png)

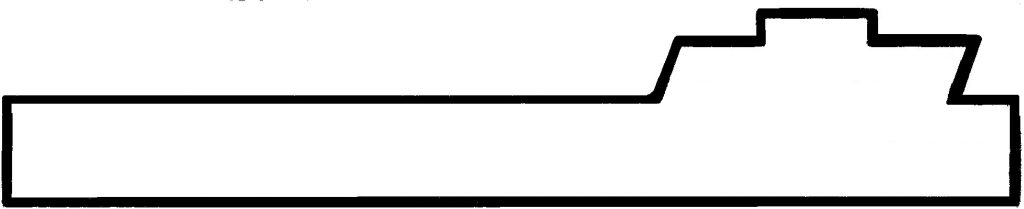

Once the basic image was created, I used parts of it to make a background outline.
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/04/emblem9-background.jpg)

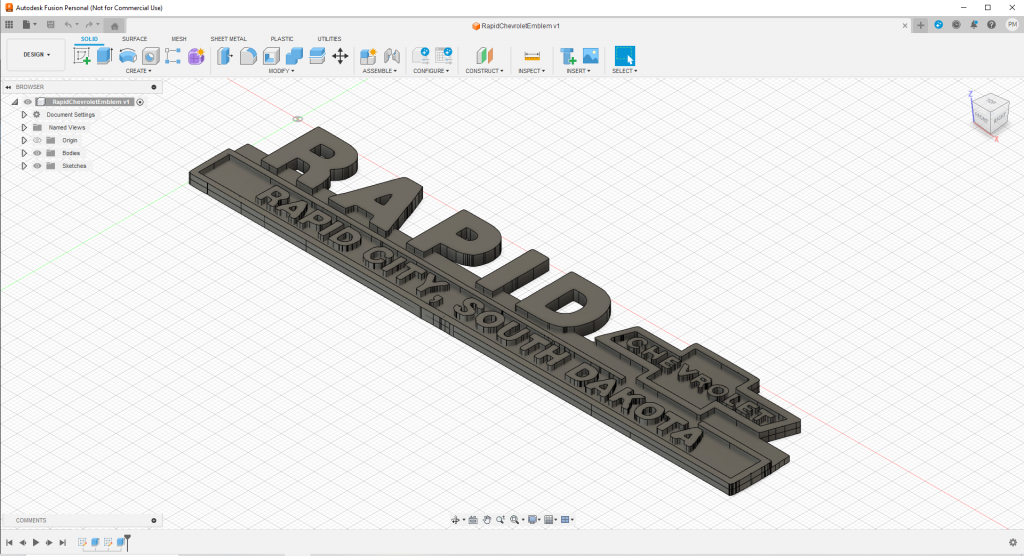

These two pieces were traced into SVG files using Inkscape to turn them into outlines. The SVG files were then imported into Fusion360, where I filled and extruded them to form the final object.
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/04/rapidcityfusion360.png)

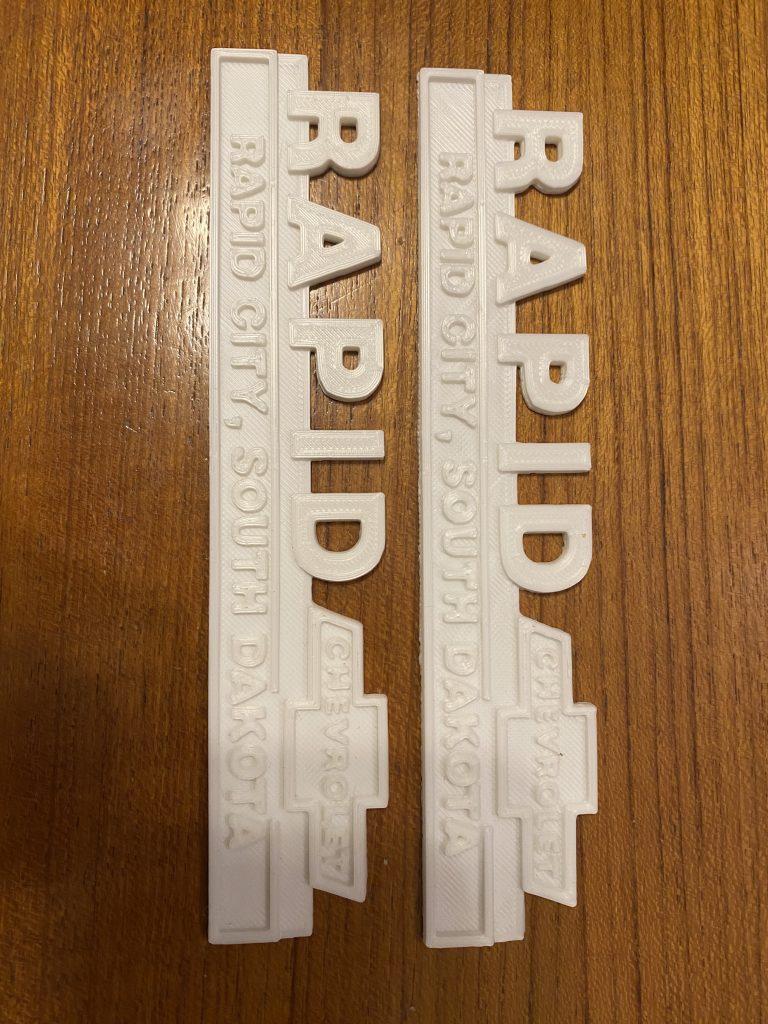

The object was saved as a STL file, loaded into Cura, and sliced for my Ender3 printer. I used PLA filament to print it.
![](https://www.bracketracer.com/wordpress/wp-content/uploads/2024/03/IMG_2017.jpeg)
It’s not perfect, but it’s a good 10-footer if it is painted with chrome paint. Another option would be using a service like https://shapeways.com to render it in metal, or https://www.gcartrim.com/ to have the plastic plated.
